Commodore C64C & C128 Shortboard RF Modulator Replacement V2 'S-VIDEO MOD'
This is an RF modulator replacement for the 'shortboard' Commodore 64C ASSY 250469 and Commodore 128 flat and D (plastic case)
Features:- Superior video output compared to the original RF modulator
- Direct S-Video output for S-Video capable displays and upscalers
- Also known as 4 Pin Mini-DIN (S-VHS)
Adjustable Luma:
Sync ratio (contrast control)
Signal passthrough to the C64/128 AV DIN - for those who prefer to use the standard DIN connector.
3.5mm stereo audio output with the left channel dedicated to SID audio, and right channel selectable between SID audio (dual mono), composite video, and external (for dual SID setups, LumaCode, etc.)
Optional C128 jailbar filter
* S-Video Cable available separately.. Only the board (as shown) and header pins supplied.* Colour of connectors may vary.

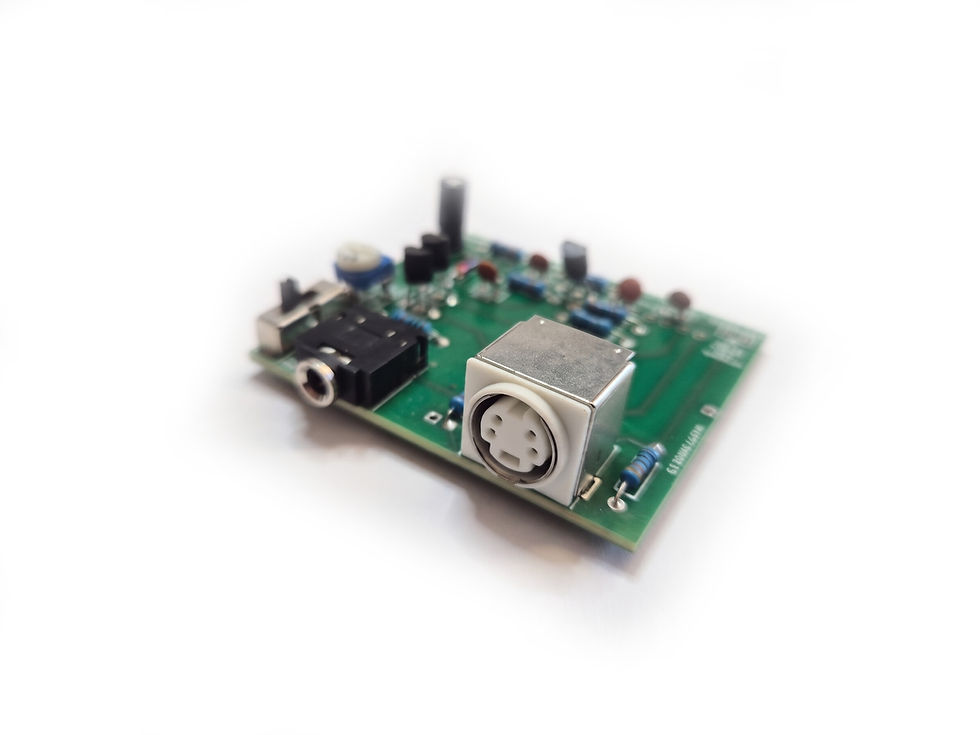

Commodore 64 & C128 RF Modulator S-Video Mod
TECHNICAL INFO
You'll need to desolder your current modulator, solder headers to this board and to your C64 taking care to align the sockets with the holes in the case. You need to be competent with a soldering iron and need a solder sucker and/or desoldering braid!
